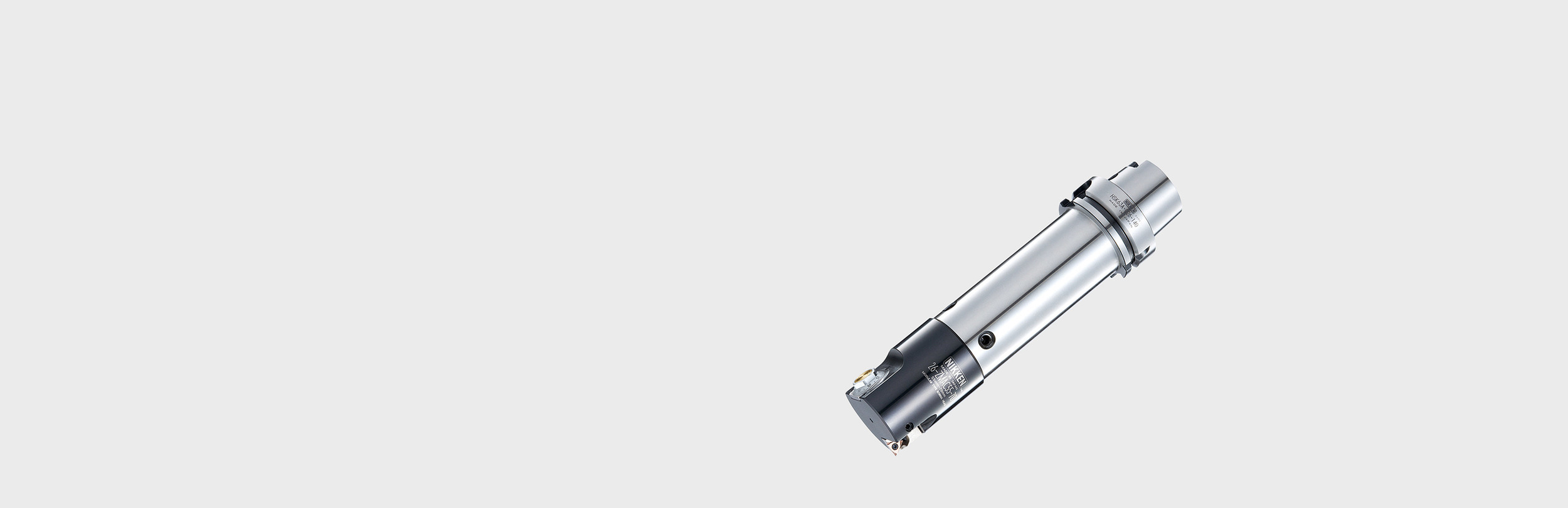

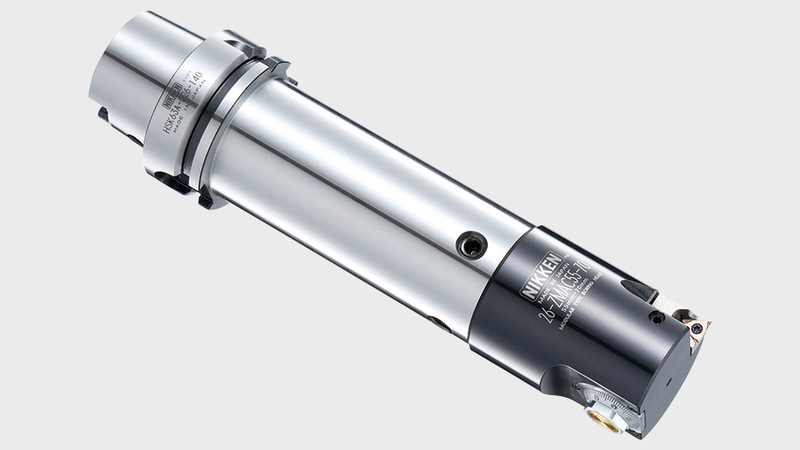

Řada modulárních vyvrtávacích systémů NIKKEN ZMAC Advanced poskytuje fantastický a přesný výkon pro jakýkoli semi-finishing a dokončovací proces.
K dispozici s exkluzivními řeznými plátky NIKKEN máme dvě různá řešení:
- NIKKEN MP / MS - Trojúhelníková geometrie vložky pro jemné dokončení.
- NIKKEN CC – kosočtvercová geometrie vložky pro semi-finish.
K dispozici je také možnost volby řezných plátků třetí strany, ISO NIKKEN ZMAC Advanced s vedením pro kazety, aby vyhovovala více standardním možnostem vložení podle potřeby.
ZMAC je naše dokonalé řešení pro jemné vyvrtávání - Samotná vyvrtávací kazeta, na rozdíl od konkurenčních řešení, je vybavena vysoce tuhou podpěrou s dvojitým kontaktem, která je navržena tak, aby plně podepírala sedací destičku v celém rozsahu svého rozsahu pojezdu.
K dispozici je také možnost volby řezných plátků třetí strany, ISO NIKKEN ZMAC Advanced s vedením pro kazety, aby vyhovovala více standardním možnostem vložení podle potřeby.
ZMAC je naše dokonalé řešení pro jemné vyvrtávání - Samotná vyvrtávací kazeta, na rozdíl od konkurenčních řešení, je vybavena vysoce tuhou podpěrou s dvojitým kontaktem, která je navržena tak, aby plně podepírala sedací destičku v celém rozsahu svého rozsahu pojezdu.
Zajišťovací červík se aplikuje přesně na 90 stupních na stavěcí šroub, aby se vyloučila jakákoli možnost vychýlení a přednastavené odchylky měření.
ZMAC je vyroben s přesným odstupňovaným mikronovým číselníkem, který má vnitřně uzemněný závit a je speciálně tepelně zpracován na HV800. To je spojeno s přesným závitem kazety, která je také kalena a tepelně zpracována na HRC50-55.
Řešení je standardně dodáváno s chlazením středem jako standard, který chladící kapalinu přivádí skrz trn, přes hlavu ZMAC přímo nad řeznou vložkou pro optimální chlazení i v omezeném otvoru.
Abychom snížili hmotnost sestavy a pracovali při vyšších otáčkách, můžeme také nabídnout naši variantu ZMAC Alpha. Je vyroben ze speciálního tvrzeného materiálu z lehké slitiny a je vybaven systémem vnitřní vyvážení pro potlačení vibrací.
Naše standardní modulární vyvrtávací hlavy ZMAC a ZMAC Alpha (od ZMAC25) jsou v závislosti na kuželu nástroje k dispozici v 10 velikostech:
- ZMAC16 - pro průměry 15,9 mm až 20,2 mm.
- ZMAC20 - pro průměry 19,8 mm až 25,2 mm.
- ZMAC25 - pro průměry 24,8 mm až 32,2 mm.
- ZMAC32 - pro průměry 31,8 mm až 42,2 mm.
- ZMAC42 - pro průměry 41,8 mm až 55,2 mm.
- ZMAC55 - pro průměry 54,8 mm až 70,2 mm.
- ZMAC70 - pro průměry 69,8 mm až 85,2 mm.
- ZMAC85 - pro průměry 84,8 mm až 100,2 mm.
- ZMAC100 - pro průměry od 99,5 mm do 140,5 mm.
- ZMAC140 - pro průměry 139,5 mm až 180,5 mm.
-
"Vysoká přesnost s jednoduchým mikronovým nastavením."
-
Pro vyšší rychlosti je k dispozici lehká slitina
-
Unikátní podpora dvojitého kontaktu “
![](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBdWdkIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--9b1aae63bfbbbfde9627ef731065b5df8026ad46/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/ZMAC---HSK-100.jpg)
![](/rails/active_storage/representations/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaHBBdWtkIiwiZXhwIjpudWxsLCJwdXIiOiJibG9iX2lkIn19--a3821229d2224edd33e911ae87c047e889c3e74b/eyJfcmFpbHMiOnsibWVzc2FnZSI6IkJBaDdCam9VWTI5dFltbHVaVjl2Y0hScGIyNXpld2s2RUdGMWRHOWZiM0pwWlc1MFZEb01aM0poZG1sMGVVa2lDMk5sYm5SbGNnWTZCa1ZVT2d0eVpYTnBlbVZKSWcwNE1EQjRORFV3WGdZN0NGUTZDV055YjNCSkloQTRNREI0TkRVd0t6QXJNQVk3Q0ZRPSIsImV4cCI6bnVsbCwicHVyIjoidmFyaWF0aW9uIn19--504807c00c81bc60c54f8203f5b100694120b648/HSK-ZMAC.jpg)
NIKKEN KATALOG NC TOOLING ŘEŠENÍ
(PDF - 33.8 MB)
Vyvrtávací brožura
(PDF - 70.4 MB)

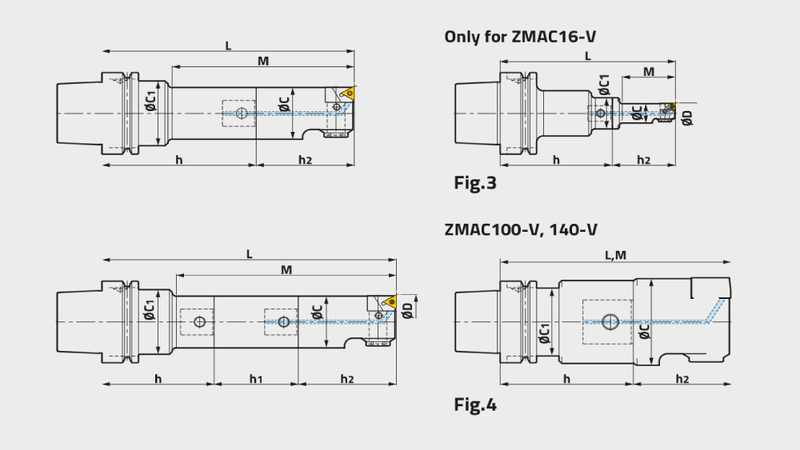

Dostupné velikost a kapacita
KUŽEL | BORING ARBOR | SPACER/PLATE | HEAD/CARTRIDGE/BIT | DIA 'D' MIN | DIA 'D' MAX | BORING DEPTH 'H' | INSERT | APLIKACE | |
---|---|---|---|---|---|---|---|---|---|
BT40-Q12-110 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
BT40-Q12-110 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
BT40-Q12-80 + ~ + 12-ZMAC16-45AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-45V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-55AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC16-55V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + ~ + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole grinding |
BT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | BT40 | BT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
BT40-Q16-125 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole grinding |
BT40-Q16-125 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
BT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-125 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
BT40-Q16-95 + ~ + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
BT40-Q16-95 + ~ + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
BT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-95 + ~ + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
BT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | BT40 | BT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
BT40-Q20-110 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-110 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
BT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-110 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
BT40-Q20-80 + ~ + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-80 + ~ + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
BT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-80 + ~ + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
BT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | BT40 | BT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
BT40-Q26-140 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-140 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
BT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-140 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
BT40-Q26-95 + ~ + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-95 + ~ + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
BT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-95 + ~ + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
BT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | BT40 | BT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
BT40-Q34-110 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-110 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
BT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-110 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | Finishing |
BT40-Q34-95 + ~ + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-95 + ~ + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
BT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-95 + ~ + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
BT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | BT40 | BT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | BT50 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
BT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | BT40 | BT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
BT40-Q42-95 + ~ + 42-ZMAC85-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
BT40-Q42-95 + ~ + 42-ZMAC85-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
BT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
BT40-Q42-95 + ~ + 42-ZMAC85R-100V | BT40 | BT40-Q42-95 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 195.0 | CC08 | Finishing |
BT40-Q9-80 + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-80 + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | BT40 | BT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
BT40-Q9-95N + ~ + 9-ZMAC20-40AAV | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
BT40-Q9-95N + ~ + 9-ZMAC20-40V | BT40 | BT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
BT50-Q12-125 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-125 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC16-45AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC16-45V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC16-55AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC16-55V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
BT50-Q12-95 + ~ + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + ~ + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
BT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | BT50 | BT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
BT50-Q16-125N + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-125N + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
BT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-125N + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | BT50 | BT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
BT50-Q16-155 + ~ + 16-ZMAC32-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
BT50-Q16-155 + ~ + 16-ZMAC32-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
BT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
BT50-Q16-155 + ~ + 16-ZMAC32R-55V | BT50 | BT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
BT50-Q20-110 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
BT50-Q20-110 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 142.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | BT50 | BT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
BT50-Q20-125 + ~ + 20-ZMAC42-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
BT50-Q20-125 + ~ + 20-ZMAC42-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
BT50-Q20-125 + ~ + 20-ZMAC42R-70AAV | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
BT50-Q20-125 + ~ + 20-ZMAC42R-70V | BT50 | BT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
BT50-Q26-140 + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-140 + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
BT50-Q26-140 + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 117.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-140 + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 177.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | BT50 | BT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
BT50-Q26-170N + ~ + 26-ZMAC55-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
BT50-Q26-170N + ~ + 26-ZMAC55-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
BT50-Q26-170N + ~ + 26-ZMAC55R-70AAV | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 182.0 | CC06 | High speeds / deep hole drilling |
BT50-Q26-170N + ~ + 26-ZMAC55R-70V | BT50 | BT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
BT50-Q34-170 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-170 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
BT50-Q34-170 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 190.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-170 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | BT50 | BT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
BT50-Q34-200 + ~ + 34-ZMAC70-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
BT50-Q34-200 + ~ + 34-ZMAC70-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
BT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
BT50-Q34-200 + ~ + 34-ZMAC70R-70V | BT50 | BT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
BT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
BT50-Q42-125 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 290.0 | CC12 | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC85-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC85-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
BT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
BT50-Q42-190 + ~ + 42-ZMAC85R-100V | BT50 | BT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 325.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
BT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-225A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-225A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 325.0 | CC12 | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
BT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-275A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-275A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 375.0 | CC12 | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC100-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC100-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC100R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 425.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC100R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC140-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC140-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
BT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
BT50-Q42-325A + ~ + 42-ZMAC140R-100V | BT50 | BT50-Q42-325A | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 425.0 | CC12 | Finishing |
BT50-Q9-110 + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-110 + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | BT50 | BT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
BT50-Q9-125N + ~ + 9-ZMAC20-40AAV | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
BT50-Q9-125N + ~ + 9-ZMAC20-40V | BT50 | BT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
HSK100A-Q12-125 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-125 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC16-45V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC16-55V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
HSK100A-Q12-95 + ~ + 12-ZMAC25-40V | HSK100A | HSK100A-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
HSK100A-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
HSK100A-Q26-170N + ~ + 26-ZMAC55-70V | HSK100A | HSK100A-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
HSK100A-Q34-170 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
HSK100A-Q34-200 + ~ + 34-ZMAC70-70V | HSK100A | HSK100A-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
HSK100A-Q9-110 + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
HSK100A-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
HSK100A-Q9-125N + ~ + 9-ZMAC20-40V | HSK100A | HSK100A-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
HSK63A-Q12-110 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-110 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC16-45AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC16-45V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC16-55AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC16-55V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
HSK63A-Q12-80 + ~ + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + ~ + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | HSK63A | HSK63A-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
HSK63A-Q16-125 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
HSK63A-Q16-95 + ~ + 16-ZMAC32-55AAV | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
HSK63A-Q16-95 + ~ + 16-ZMAC32-55V | HSK63A | HSK63A-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
HSK63A-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | HSK63A | HSK63A-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
HSK63A-Q42-95 + ~ + 42-ZMAC85-100AAV | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
HSK63A-Q42-95 + ~ + 42-ZMAC85-100V | HSK63A | HSK63A-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
HSK63A-Q9-80 + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-80 + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
HSK63A-Q9-95N + ~ + 9-ZMAC20-40AAV | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
HSK63A-Q9-95N + ~ + 9-ZMAC20-40V | HSK63A | HSK63A-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
IT40-Q12-110 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-110 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-110 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC16-45AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC16-45V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC16-55AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC16-55V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
IT40-Q12-80 + ~ + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + ~ + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40AAV | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
IT40-Q12-80 + SP12-12-45 + 12-ZMAC25-40V | IT40 | IT40-Q12-80 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
IT40-Q16-125 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-125 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
IT40-Q16-125 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-125 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-125 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
IT40-Q16-95 + ~ + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-95 + ~ + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
IT40-Q16-95 + ~ + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-95 + ~ + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55AAV | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 122.0 | CC06 | High speeds / deep hole drilling |
IT40-Q16-95 + SP16-16-45 + 16-ZMAC32R-55V | IT40 | IT40-Q16-95 | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
IT40-Q20-110 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-110 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
IT40-Q20-110 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 130.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-110 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
IT40-Q20-80 + ~ + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-80 + ~ + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
IT40-Q20-80 + ~ + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 97.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-80 + ~ + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70AAV | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70AAV | 41.8 | 55.2 | 157.0 | CC06 | High speeds / deep hole drilling |
IT40-Q20-80 + SP20-20-60 + 20-ZMAC42R-70V | IT40 | IT40-Q20-80 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
IT40-Q26-140 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 180.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-140 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 180.0 | 6MP | Finishing |
IT40-Q26-140 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 180.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-140 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 180.0 | CC06 | Finishing |
IT40-Q26-95 + ~ + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 135.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-95 + ~ + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 135.0 | 6MP | Finishing |
IT40-Q26-95 + ~ + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 135.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-95 + ~ + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 135.0 | CC06 | Finishing |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 195.0 | 6MP | High speeds / deep hole drilling |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 195.0 | 6MP | Finishing |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70AAV | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70AAV | 54.8 | 70.2 | 195.0 | CC06 | High speeds / deep hole drilling |
IT40-Q26-95 + SP26-26-60 + 26-ZMAC55R-70V | IT40 | IT40-Q26-95 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 195.0 | CC06 | Finishing |
IT40-Q34-110 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 180.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-110 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 180.0 | 6MP | Finishing |
IT40-Q34-110 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-110 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-110 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 180.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 165.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 165.0 | 6MP | Finishing |
IT40-Q34-95 + ~ + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 165.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + ~ + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 165.0 | CC08 | Finishing |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 225.0 | 6MP | High speeds / deep hole drilling |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70-70V | 69.8 | 85.2 | 225.0 | 6MP | Finishing |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70AAV | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 225.0 | CC08 | High speeds / deep hole drilling |
IT40-Q34-95 + SP34-34-95 + 34-ZMAC70R-70V | IT40 | IT40-Q34-95 | SP34-34-95 | 34-ZMAC70R-70V | 69.8 | 85.2 | 225.0 | CC08 | Finishing |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100AAV | IT50 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100AAV | 84.8 | 100.2 | 272.0 | 6MP | High speeds / deep hole drilling |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85-100V | 84.8 | 100.2 | 272.0 | 6MP | Finishing |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 272.0 | CC08 | High speeds / deep hole drilling |
IT40-Q42-125 + SP42-42-90 + 42-ZMAC85R-100V | IT40 | IT40-Q42-125 | SP42-42-90 | 42-ZMAC85R-100V | 84.8 | 100.2 | 272.0 | CC08 | Finishing |
IT40-Q42-95 + ~ + 42-ZMAC85-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 195.0 | 6MP | High speeds / deep hole drilling |
IT40-Q42-95 + ~ + 42-ZMAC85-100V | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 195.0 | 6MP | Finishing |
IT40-Q42-95 + ~ + 42-ZMAC85R-100AAV | IT40 | IT40-Q42-95 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 195.0 | CC08 | High speeds / deep hole drilling |
IT40-Q9-80 + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-80 + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40AAV | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-80 + SP9-9-30 + 9-ZMAC20-40V | IT40 | IT40-Q9-80 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
IT40-Q9-95N + ~ + 9-ZMAC20-40AAV | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
IT40-Q9-95N + ~ + 9-ZMAC20-40V | IT40 | IT40-Q9-95N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
IT50-Q12-125 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-125 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 90.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-125 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-125 | IT50-Q12-125 | 12-ZMAC25-40V | 24.8 | 32.2 | 90.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC16-45AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45AAV | 15.9 | 20.2 | 38.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC16-45V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-45V | 15.9 | 20.2 | 38.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC16-55AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55AAV | 15.9 | 20.2 | 48.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC16-55V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC16-55V | 15.9 | 20.2 | 48.0 | 3MP | Finishing |
IT50-Q12-95 + ~ + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40AAV | 24.8 | 32.2 | 52.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + ~ + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | ~ | 12-ZMAC25-40V | 24.8 | 32.2 | 52.0 | 3MP | Finishing |
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40AAV | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40AAV | 24.8 | 32.2 | 97.0 | 3MP | High speeds / deep hole drilling |
IT50-Q12-95 + SP12-12-45 + 12-ZMAC25-40V | IT50 | IT50-Q12-95 | SP12-12-45 | 12-ZMAC25-40V | 24.8 | 32.2 | 97.0 | 3MP | Finishing |
IT50-Q16-125N + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 77.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-125N + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 77.0 | 4MP | Finishing |
IT50-Q16-125N + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 77.0 | CC06 | High speeds / deep hole drilling |
IT50-Q16-125N + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 77.0 | CC06 | Finishing |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55AAV | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55AAV | 31.8 | 42.2 | 122.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32-55V | 31.8 | 42.2 | 122.0 | 4MP | Finishing |
IT50-Q16-125N + SP16-16-45 + 16-ZMAC32R-55V | IT50 | IT50-Q16-125N | SP16-16-45 | 16-ZMAC32R-55V | 31.8 | 42.2 | 122.0 | CC06 | Finishing |
IT50-Q16-155 + ~ + 16-ZMAC32-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55AAV | 31.8 | 42.2 | 110.0 | 4MP | High speeds / deep hole drilling |
IT50-Q16-155 + ~ + 16-ZMAC32-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32-55V | 31.8 | 42.2 | 110.0 | 4MP | Finishing |
IT50-Q16-155 + ~ + 16-ZMAC32R-55AAV | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55AAV | 31.8 | 42.2 | 110.0 | CC06 | High speeds / deep hole drilling |
IT50-Q16-155 + ~ + 16-ZMAC32R-55V | IT50 | IT50-Q16-155 | ~ | 16-ZMAC32R-55V | 31.8 | 42.2 | 110.0 | CC06 | Finishing |
IT50-Q20-110 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 97.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 97.0 | 6MP | Finishing |
IT50-Q20-110 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 97.0 | CC06 | Finishing |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 142.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42-70V | 41.8 | 55.2 | 142.0 | 6MP | Finishing |
IT50-Q20-110 + SP20-20-45 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-45 | 20-ZMAC42R-70V | 41.8 | 55.2 | 142.0 | CC06 | Finishing |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70AAV | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70AAV | 41.8 | 55.2 | 157.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42-70V | 41.8 | 55.2 | 157.0 | 6MP | Finishing |
IT50-Q20-110 + SP20-20-60 + 20-ZMAC42R-70V | IT50 | IT50-Q20-110 | SP20-20-60 | 20-ZMAC42R-70V | 41.8 | 55.2 | 157.0 | CC06 | Finishing |
IT50-Q20-125 + ~ + 20-ZMAC42-70AAV | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70AAV | 41.8 | 55.2 | 130.0 | 6MP | High speeds / deep hole drilling |
IT50-Q20-125 + ~ + 20-ZMAC42-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42-70V | 41.8 | 55.2 | 130.0 | 6MP | Finishing |
IT50-Q20-125 + ~ + 20-ZMAC42R-70V | IT50 | IT50-Q20-125 | ~ | 20-ZMAC42R-70V | 41.8 | 55.2 | 130.0 | CC06 | Finishing |
IT50-Q26-140 + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 117.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-140 + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 117.0 | 6MP | Finishing |
IT50-Q26-140 + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 117.0 | CC06 | Finishing |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70AAV | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70AAV | 54.8 | 70.2 | 177.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55-70V | 54.8 | 70.2 | 177.0 | 6MP | Finishing |
IT50-Q26-140 + SP26-26-60 + 26-ZMAC55R-70V | IT50 | IT50-Q26-140 | SP26-26-60 | 26-ZMAC55R-70V | 54.8 | 70.2 | 177.0 | CC06 | Finishing |
IT50-Q26-170N + ~ + 26-ZMAC55-70AAV | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70AAV | 54.8 | 70.2 | 182.0 | 6MP | High speeds / deep hole drilling |
IT50-Q26-170N + ~ + 26-ZMAC55-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55-70V | 54.8 | 70.2 | 182.0 | 6MP | Finishing |
IT50-Q26-170N + ~ + 26-ZMAC55R-70V | IT50 | IT50-Q26-170N | ~ | 26-ZMAC55R-70V | 54.8 | 70.2 | 182.0 | CC06 | Finishing |
IT50-Q34-170 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 190.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-170 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 190.0 | 6MP | Finishing |
IT50-Q34-170 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 190.0 | CC08 | Finishing |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70AAV | 69.8 | 85.2 | 250.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70-70V | 69.8 | 85.2 | 250.0 | 6MP | Finishing |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 250.0 | CC08 | High speeds / deep hole drilling |
IT50-Q34-170 + SP34-34-60 + 34-ZMAC70R-70V | IT50 | IT50-Q34-170 | SP34-34-60 | 34-ZMAC70R-70V | 69.8 | 85.2 | 250.0 | CC08 | Finishing |
IT50-Q34-200 + ~ + 34-ZMAC70-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70AAV | 69.8 | 85.2 | 220.0 | 6MP | High speeds / deep hole drilling |
IT50-Q34-200 + ~ + 34-ZMAC70-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70-70V | 69.8 | 85.2 | 220.0 | 6MP | Finishing |
IT50-Q34-200 + ~ + 34-ZMAC70R-70AAV | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70AAV | 69.8 | 85.2 | 220.0 | CC08 | High speeds / deep hole drilling |
IT50-Q34-200 + ~ + 34-ZMAC70R-70V | IT50 | IT50-Q34-200 | ~ | 34-ZMAC70R-70V | 69.8 | 85.2 | 220.0 | CC08 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 225.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 225.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 225.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 225.0 | CC12 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 225.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 225.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 225.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC140R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC140R-100V | 139.5 | 180.5 | 225.0 | CC12 | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 182.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 182.0 | 6MP | Finishing |
IT50-Q42-125 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 182.0 | CC08 | High speeds / deep hole drilling |
IT50-Q42-125 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-125 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 182.0 | CC08 | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 290.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 290.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 290.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 290.0 | CC12 | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 290.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 290.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 290.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100AAV | 84.8 | 100.2 | 247.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85-100V | 84.8 | 100.2 | 247.0 | 6MP | Finishing |
IT50-Q42-190 + ~ + 42-ZMAC85R-100AAV | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100AAV | 84.8 | 100.2 | 247.0 | CC08 | High speeds / deep hole drilling |
IT50-Q42-190 + ~ + 42-ZMAC85R-100V | IT50 | IT50-Q42-190 | ~ | 42-ZMAC85R-100V | 84.8 | 100.2 | 247.0 | CC08 | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 325.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-225A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 325.0 | 6MP | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 325.0 | CC12 | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 325.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-225A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 325.0 | 6MP | Finishing |
IT50-Q42-225A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-225A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 325.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 375.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 375.0 | 6MP | Schlichten |
IT50-Q42-275A + ~ + 42-ZMAC100R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100AAV | 99.5 | 140.5 | 375.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 375.0 | CC12 | Finishing |
IT50-Q42-275A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 375.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-275A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 375.0 | 6MP | Finishing |
IT50-Q42-275A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-275A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 375.0 | CC12 | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC100-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100AAV | 99.5 | 140.5 | 425.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC100-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100-100V | 99.5 | 140.5 | 425.0 | 6MP | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC100R-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC100R-100V | 99.5 | 140.5 | 425.0 | CC12 | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC140-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100AAV | 139.5 | 180.5 | 425.0 | 6MP | High speeds / deep hole drilling |
IT50-Q42-325A + ~ + 42-ZMAC140-100V | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140-100V | 139.5 | 180.5 | 425.0 | 6MP | Finishing |
IT50-Q42-325A + ~ + 42-ZMAC140R-100AAV | IT50 | IT50-Q42-325A | ~ | 42-ZMAC140R-100AAV | 139.5 | 180.5 | 425.0 | CC12 | High speeds / deep hole drilling |
IT50-Q9-110 + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 45.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-110 + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 45.0 | 3MP | Finishing |
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40AAV | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40AAV | 19.8 | 25.2 | 75.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-110 + SP9-9-30 + 9-ZMAC20-40V | IT50 | IT50-Q9-110 | SP9-9-30 | 9-ZMAC20-40V | 19.8 | 25.2 | 75.0 | 3MP | Finishing |
IT50-Q9-125N + ~ + 9-ZMAC20-40AAV | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40AAV | 19.8 | 25.2 | 67.0 | 3MP | High speeds / deep hole drilling |
IT50-Q9-125N + ~ + 9-ZMAC20-40V | IT50 | IT50-Q9-125N | ~ | 9-ZMAC20-40V | 19.8 | 25.2 | 67.0 | 3MP | Finishing |
